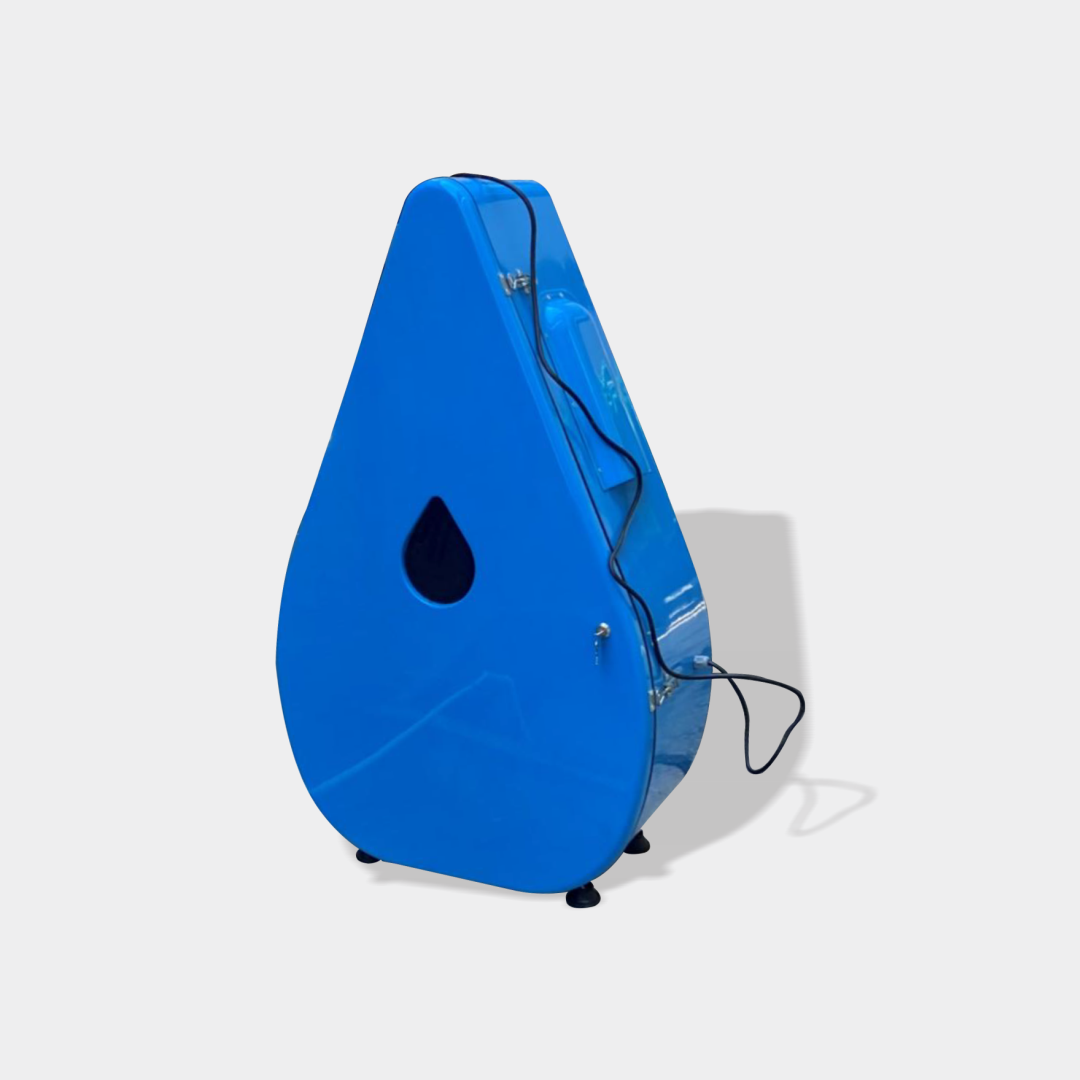

BioAct Biological Activation System
External Biological Treatment Enhancement for Wastewater Systems

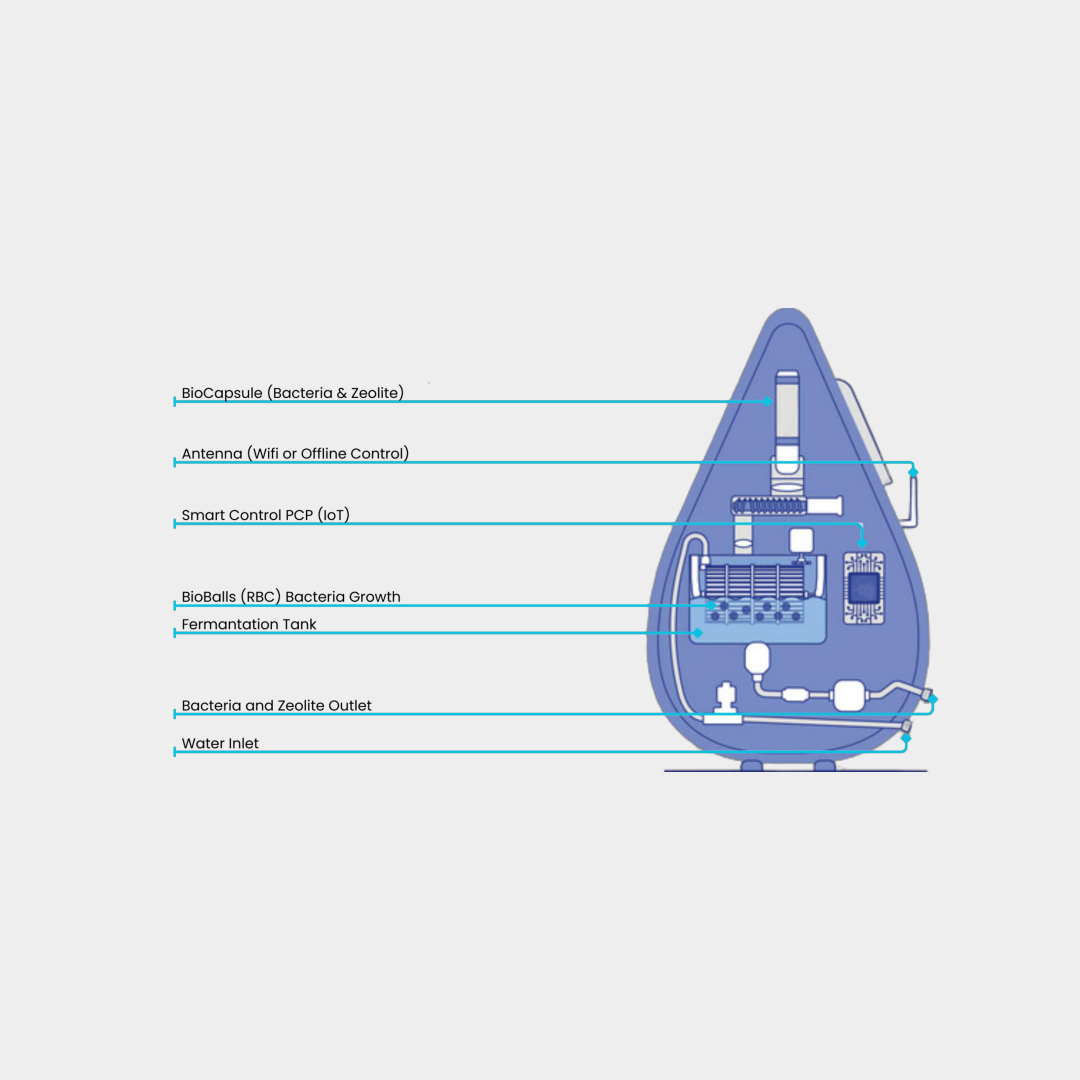

The BioAct system is an external biological activation device that enhances wastewater treatment performance by dosing high-concentration, stationary-phase bacteria combined with natural zeolite media into existing treatment processes. The device cultivates bacteria internally through a controlled fermentation process, then automatically doses the ready-to-work culture into the wastewater system at programmed intervals.
BioAct does not require the wastewater to flow through the device. It connects externally to the existing treatment infrastructure with no structural modifications, making installation quick and non-disruptive. The system operates on standard 220V electricity and requires only approximately 20 liters of tap water per day, with total energy consumption of approximately 2 kWh per month.
Key Features
Technical Specification
Parameter |
Specification |
|---|---|
|
Treatment Capacity |
Up to 1,000 m³/day per unit |
|
Scaling |
2 units: 1,000–14,000 m³/day | 3 units: 14,000–45,000 m³/day |
|
Power Consumption |
~2 kWh/month |
|
Power Supply |
220V / 50Hz |
|
Water Requirement |
~20 L/day (tap water) |
|
Consumable |
BioCapsule (bacteria + zeolite, ~monthly replacement) |
|
Bacteria Type |
Naturally occurring strains (Bacillus-based) |
|
Operating pH Range |
6 – 8 |
|
Operating Temperature |
5 – 55 °C |
|
Monitoring |
Remote via mobile application |
|
Installation |
External connection, no process modification required |
Applications
