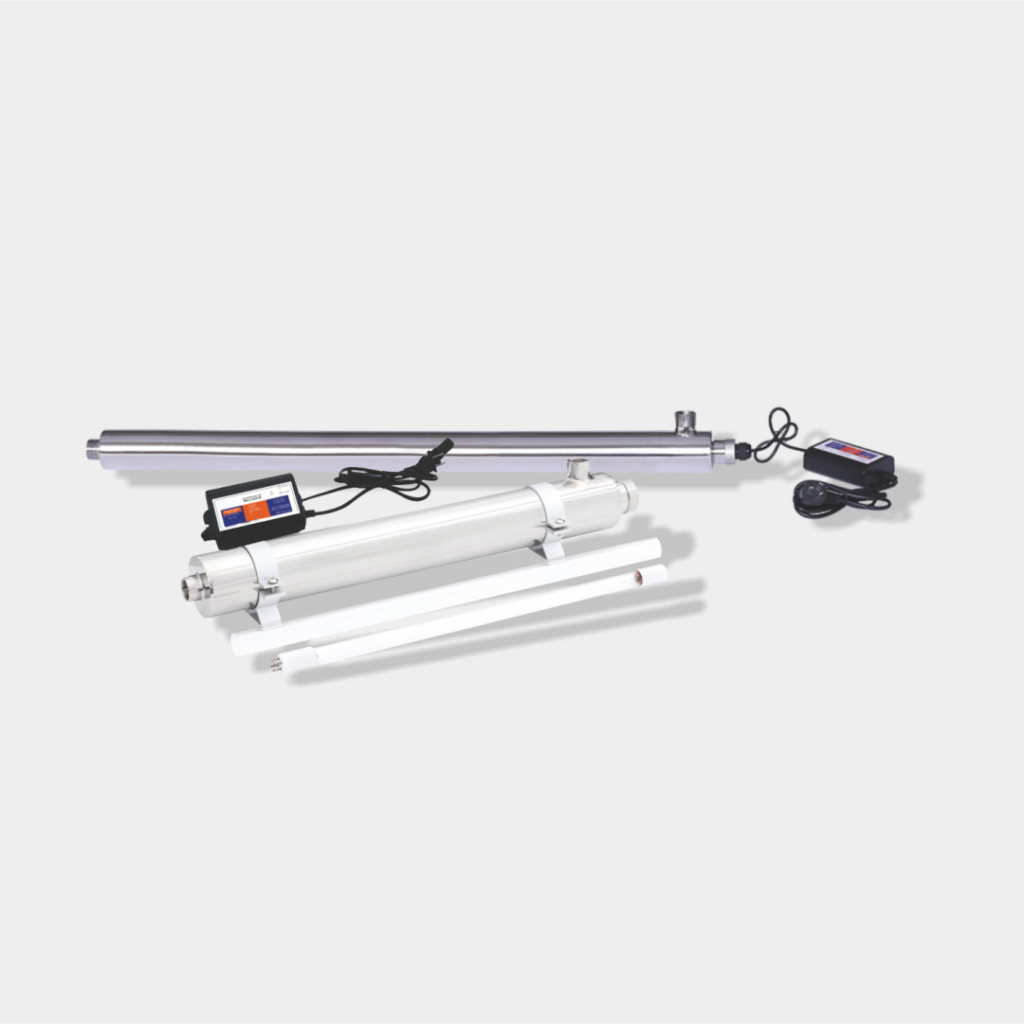

L-Series UV Sterilizer

L-Series UV Sterilizer

Industrial UV Disinfection with SS316L Construction

The L-Series is engineered for industrial and municipal applications requiring higher flow rates and enhanced corrosion resistance. Constructed from SS316L stainless steel, it is suitable for demanding water treatment environments including process water, wastewater, and applications involving aggressive water chemistry.

Flow rates from 24 to 100 m³/h make the L-Series a reliable choice for medium to large-scale water treatment installations.

Key Features

SS316L stainless steel reactor chamber for superior corrosion resistance
Flow rates from 24 to 100 m³/h
UV lamp life up to 12,000 hours
Multi-lamp reactor configurations for higher UV dose
UV intensity sensor port (optional)
Designed for continuous industrial operation

Technical Specification

Parameter	Specification
Flow Rate Range	24 – 100 m³/h
UV Wavelength	254 nm (germicidal)
Lamp Type	Low pressure amalgam
Lamp Life	Up to 12,000 hours
Chamber Material	SS316L stainless steel
Power Supply	220–380V / 50Hz

Applications

Municipal water treatment plants
Industrial process water disinfection
Food and beverage production water
Pharmaceutical water pre-treatment
Wastewater effluent disinfection
