TOC Reduction for Ultrapure Water Applications

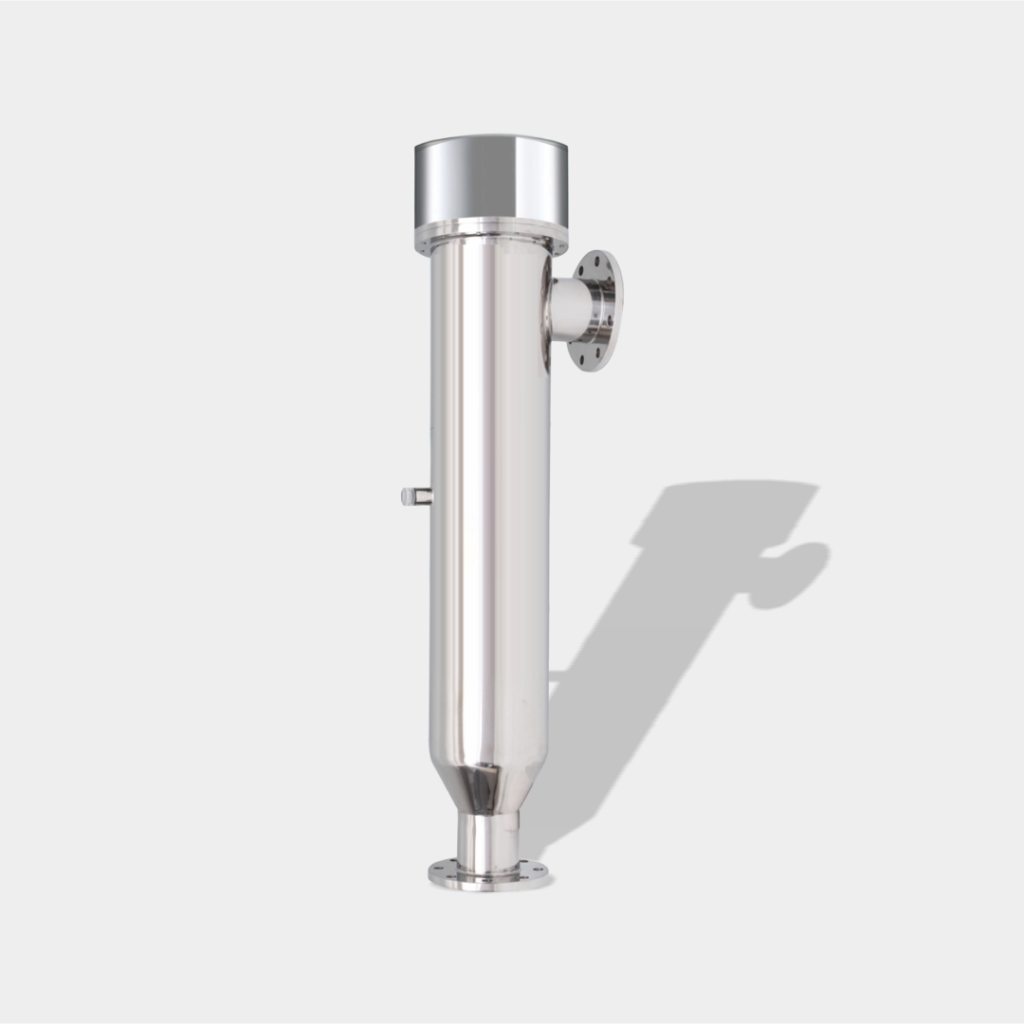

The T-Series is a specialized low pressure UV system designed for Total Organic Carbon (TOC) reduction in ultrapure water production. Built with pharmaceutical-grade SS316L stainless steel and precision surface finishes of RA ≤ 0.20 μm, the T-Series meets the demanding requirements of semiconductor, pharmaceutical, and high-purity laboratory water systems.

By generating high-energy UV light at 185 nm in addition to the standard 254 nm germicidal wavelength, the T-Series breaks down organic carbon molecules, reducing TOC levels to meet the strictest purity standards.

Key Features

Dual-wavelength output: 185 nm (TOC reduction) + 254 nm (disinfection)
SS316L stainless steel reactor with pharmaceutical-grade finish
Surface finish: RA ≤ 0.20 μm
Flow rates from 0.9 to 6 m³/h
UV lamp life up to 9,000 hours
Designed for ultrapure water (UPW) production
Sanitary connections for clean installation

Technical Specification

Parameter	Specification
Flow Rate Range	0.9 – 6 m³/h
UV Wavelength	185 nm + 254 nm
Primary Function	TOC reduction + disinfection
Lamp Life	Up to 9,000 hours
Chamber Material	SS316L stainless steel
Surface Finish	RA ≤ 0.20 μm
Connections	Sanitary / tri-clamp
Power Supply	220V / 50Hz

Applications

Semiconductor and electronics manufacturing
Pharmaceutical and biotech water systems
Laboratory ultrapure water production
Power plant boiler feed water
Cosmetics and personal care manufacturing
